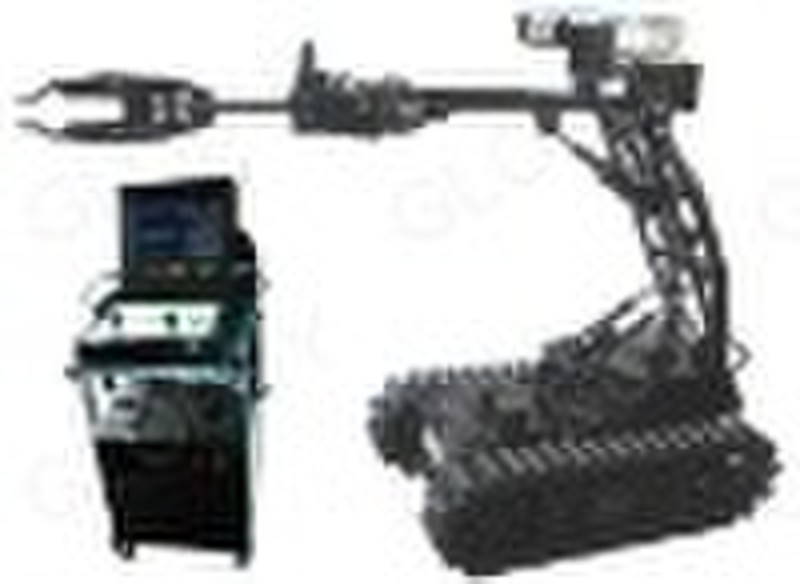

Anti explosion EOD Robot

TECHNICAL PARAMETERS Power 12V35AH Li(two) Working Hours 2-3 hours under full-load Move Speed 0-20 meters / minute (Continuously Tunable) Walking Way Double Caterpillar, adapting complex terrain Weight(clamping jaw included) 230kg Folded Size 1600*650*1200(mm) Grabbing Height 2.5m with extension rod Grabbing Weight maximum 15kg under shortest arm of force Clamping Jaw Specifications holding jaw for gripping:480mm; holding fingers for grabbing:220mm Concentric Cable 100m Driving Mode Double Caterpillar Independently-driven Minimum Turn Radius 1m Video Quadruplet videos in total 1. Two low-illumination-intensity CCD color cameras are fixed in the front and back for the observation in the process of moving forwards and backwards. 2. One color mini camera fixed on the holding jaw is used for observing in the process of grabbing and placing the unidentified object. 3. One rotating camera with 28x optical zoom lens fixed on the top of the robot is used for all-direction observation. Picture Interface 15 inch color display screen, video connecting system of four frames switching Working Scope Wireless control within 100m (open surroundings), wire control within 100m Convey Method Video/data control adopt the wire and wireless compatible controller Move Functions Move forward/ backward/spot turn/ move up or down on the slop with 40 degree and the stair with 30 degree. Arm lock Functions Arm lock whirl, upper arm rise or fall, forearm rise or fall, arm lengthen or shorten, wrist whirl/ wrist swing, clamp action Extend Function Option Equipments: disruptor, shot gun, tear-gas emitter, sighting device
